->直型d卸扣->D型卸扣->高强度卸扣->美标卸扣->合金钢直型D卸扣->高强度直型（D）卸扣->直型D型卸扣

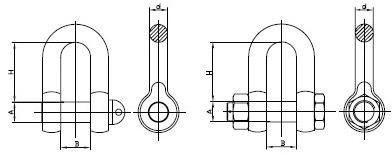

带螺母直型D型卸扣	内螺纹直型D型卸扣

产品代号	许用负荷SWL(t)	英制公称(in.)	单位(mm)				自重(kg)
			d	A	B	H
LiftDXXK01	1	3/8	10	12	16	32	0.15
LiftDXXK02	2	1/2	13	16	21	41	0.35
LiftDXXK03	3.25	5/8	16	20	27	51	0.66
LiftDXXK04	4.75	3/4	19	22	32	60	1
LiftDXXK05	6.5	7/8	22	25	37	70.5	1.5
LiftDXXK06	8.5	1	25	30	43	81	2.4
LiftDXXK07	9.5	1-1/8	29	32	46	90	3.2
LiftDXXK08	12	1-1/4	32	36	52	100	4.5
LiftDXXK09	13.5	1-3/8	35	38	57	112	5.1
LiftDXXK10	17	1-1/2	38	42	60	122	8.1
LiftDXXK11	25	1-3/4	44	50	73	146	12.2
LiftDXXK12	35	2	51	56	83	171	18.2
LiftDXXK13	45	2-1/4	56	65	95	180	26
LiftDXXK14	55	2-1/2	64	70	105	205	35.4
LiftDXXK15	60	2-3/4	70	78	100	233	44
LiftDXXK16	85(80)	3	76	82	121	263	60.6
LiftDXXK17	100	3-3/8	86	92	131	298	82.6
LiftDXXK18	120	3-1/2	90	95	154	312	100
LiftDXXK19	150	4	102	108	160	368	142
LiftDXXK20	175	4-1/4	108	120	170	390	170
LiftDXXK21	200	4-3/4	120	130	184	420	255
LiftDXXK22	250	5	127	140	210	450	310
LiftDXXK23	300	6	152	170	220	480	440
LiftDXXK24	400	7	178	190	230	500	620

产品代号 型号 许用负荷KN(tf) 单位mm 重量kg d D B H LifthjgDXK01 D 5 49(5) 23 26 44 97 1.9 LifthjgDXK02 D 6.3 62(6.3) 26 29 50 109 2.5 LifthjgDXK03 D 8 78(8) 29 33 56 123 4.0 LifthjgDXK04 D 10 98(10) 33 37 63 138 5.0 LifthjgDXK05 D 12.5 123(12.5) 36 42 70 154 6.8 LifthjgDXK06 D 16 157(16) 41 47 79 174 10.8 LifthjgDXK07 D 20 196(20) 46 52 89 195 13.4 LifthjgDXK08 D 25 245(25) 51 59 99 218 21.5 LifthjgDXK09 D 32 314(32) 58 66 112 247 30.9 LifthjgDXK10 D 40 392(40) 65 74 125 275 42.5 LifthjgDXK11 D 50 490(50) 72 83 140 308 59.6 LifthjgDXK12 D 63 617(63) 81 93 157 346 82.8 LifthjgDXK13 D 80 784(80) 91 105 177 390 172.1 LifthjgDXK14 D 100 980(100) 102 118 200 436 120.4 LifthjgDXK15 D 125 1225(125) 114 132 221 490 233.3
